MAZAK Integrex 200-IV ST x 1500 #2041-2834 en
Stock number 2041-2834
| TECHNICAL DETAILS | |
|---|---|
| Year | 2010 |

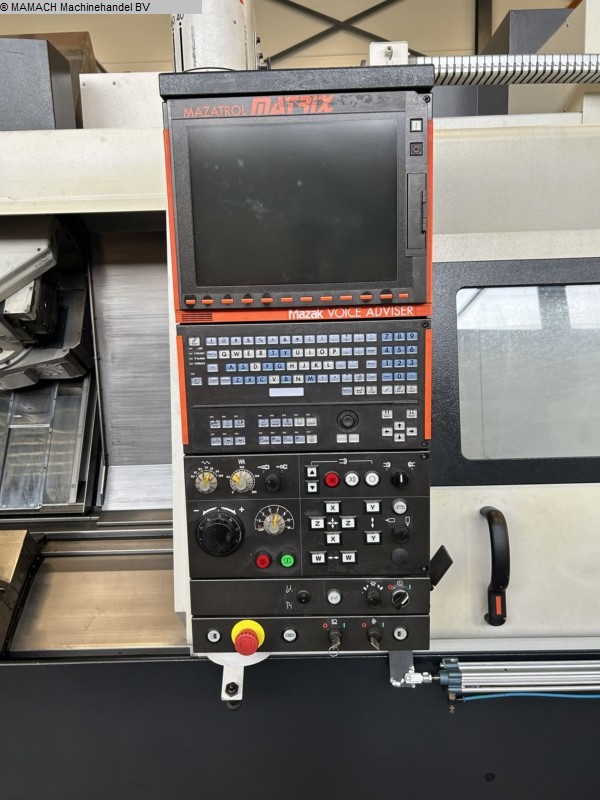

| Control | Mazatrol Matrix |
| Turning diameter | 660 / 260 mm |
| Turning length | 1495 mm |
| Spindle bore diameter | 65 mm |
| Spindle nose | A2-6 |

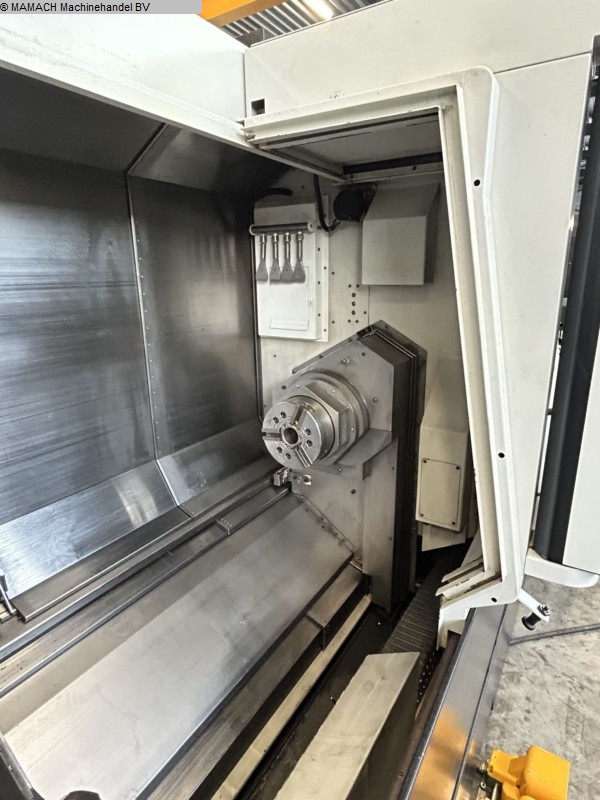

| Spindle nose sub spindle | A2-6 |
| Turning speed | 35 - 5.000 1/min |
| Turning speed sub spindle | 35 - 5.000 1/min |
| Milling head speed | 15 - 12.000 1/min |
| Movement X-axis | 580 mm |
| Movement Y-axis | 160 mm |
| Movement Z-axis | 1545 mm |
| B-Axis travel | 225 ° |
| C-Axis indexing | 0,0001 (360) ° |
| Tool Taper | Capto C6 |

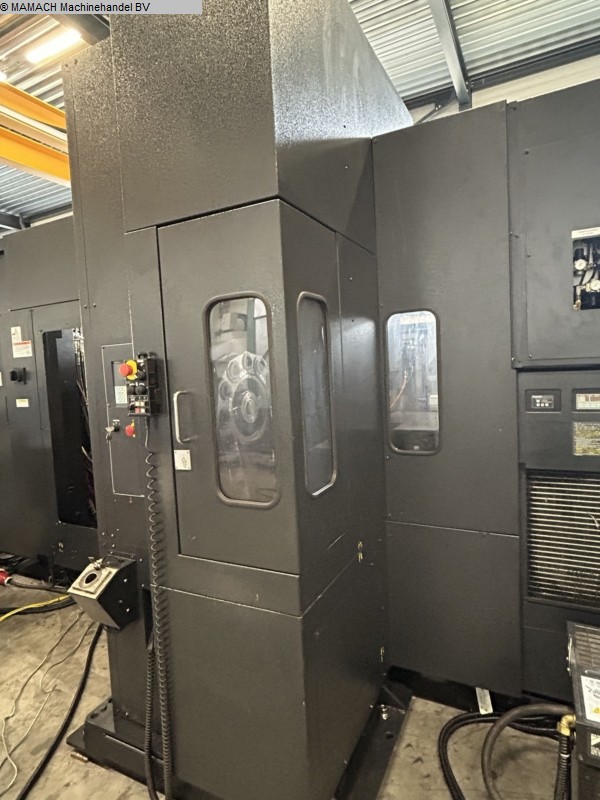

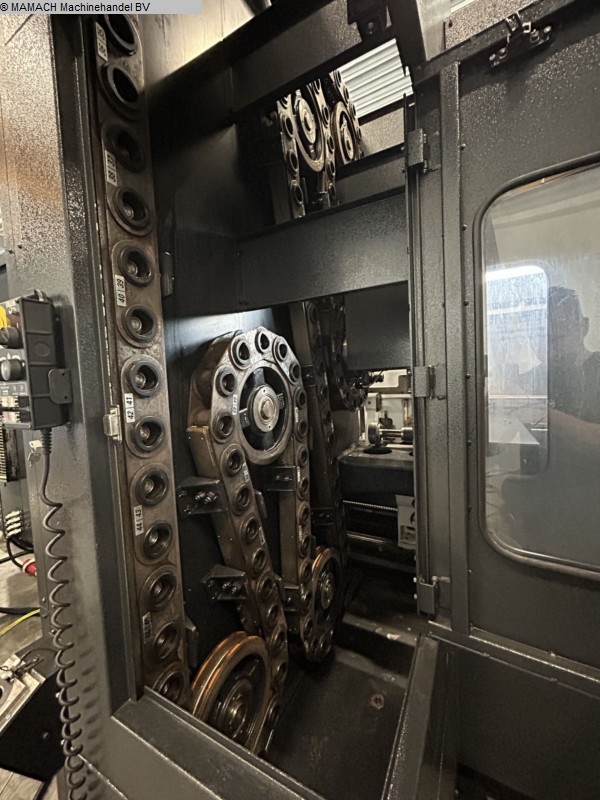

| Tools in tool magazine | 120 |

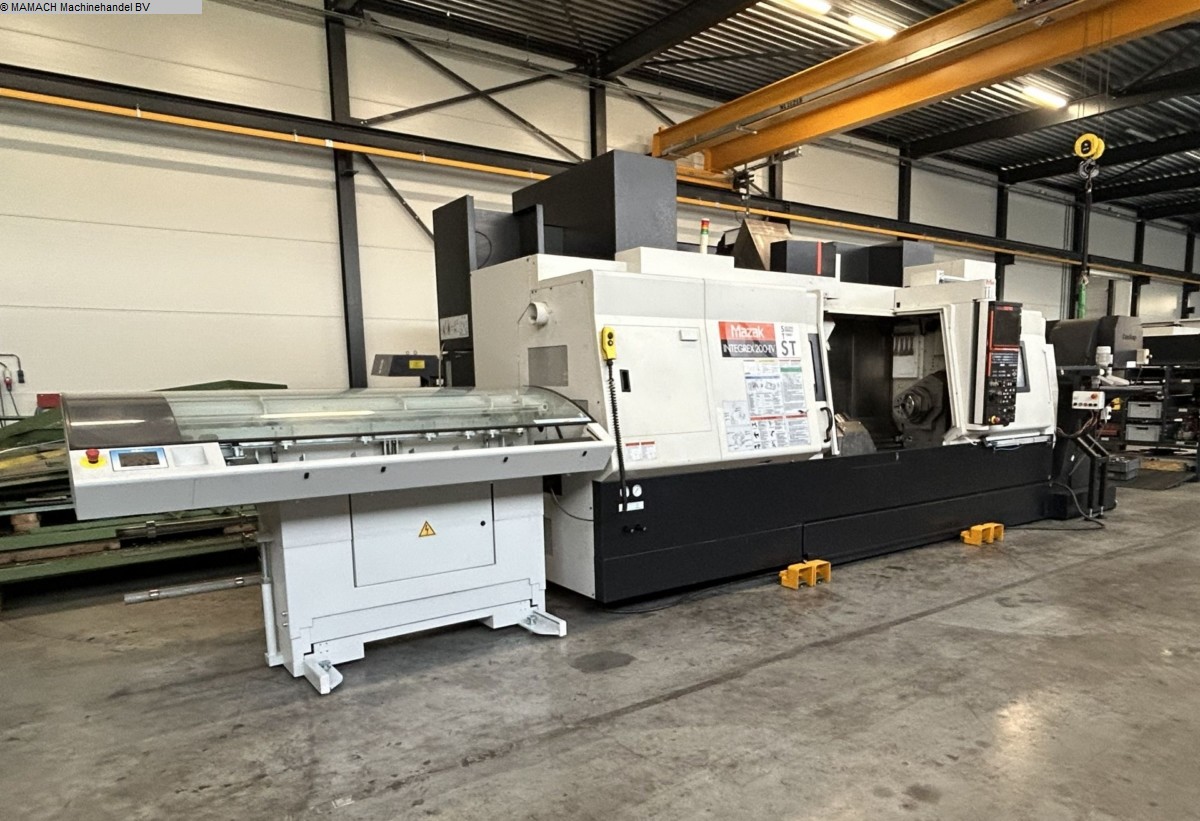

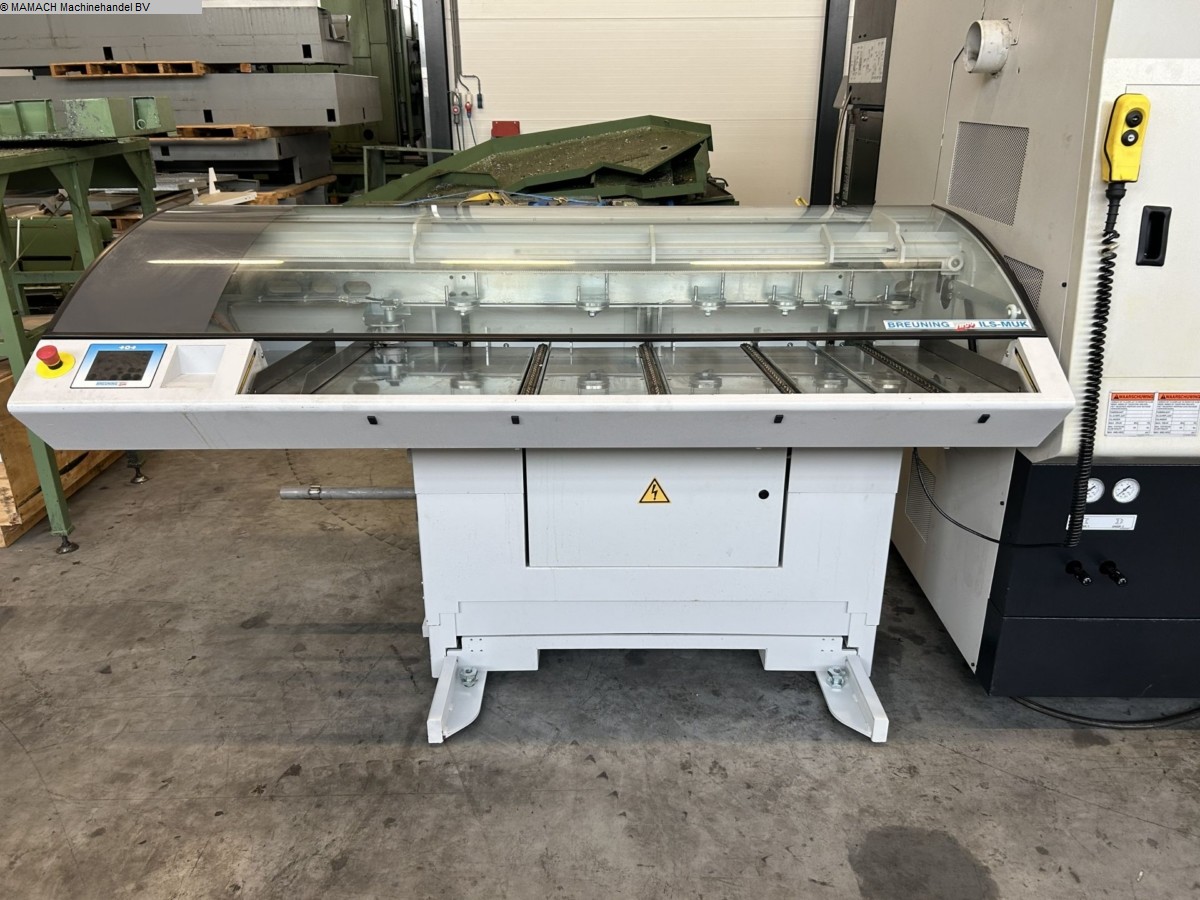

| Bar feeder | Irco-Breuning ILS-MUK |
| Length | 5.088 mm |
| Width | 2.450 mm |
| Height | 2.577 mm |
| Weight | 11.800 kg |
