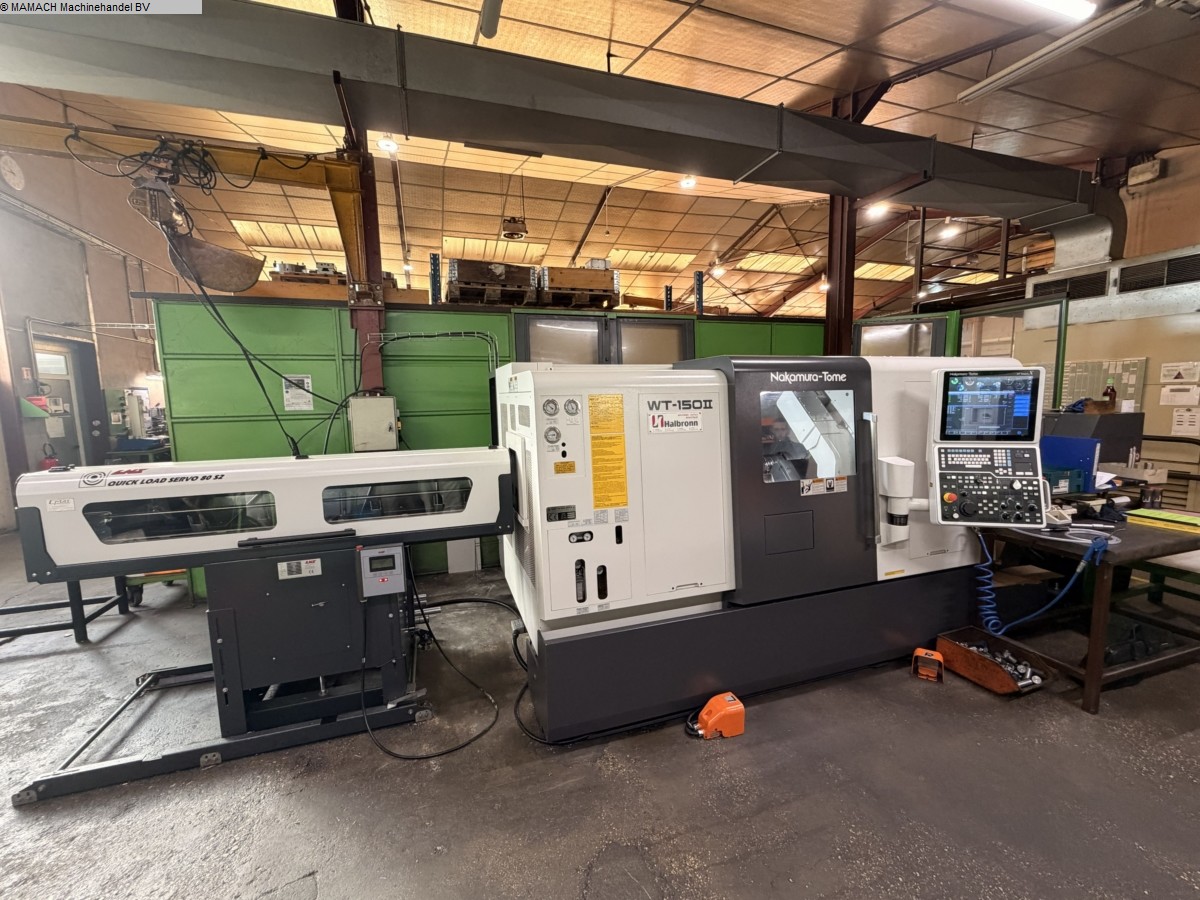

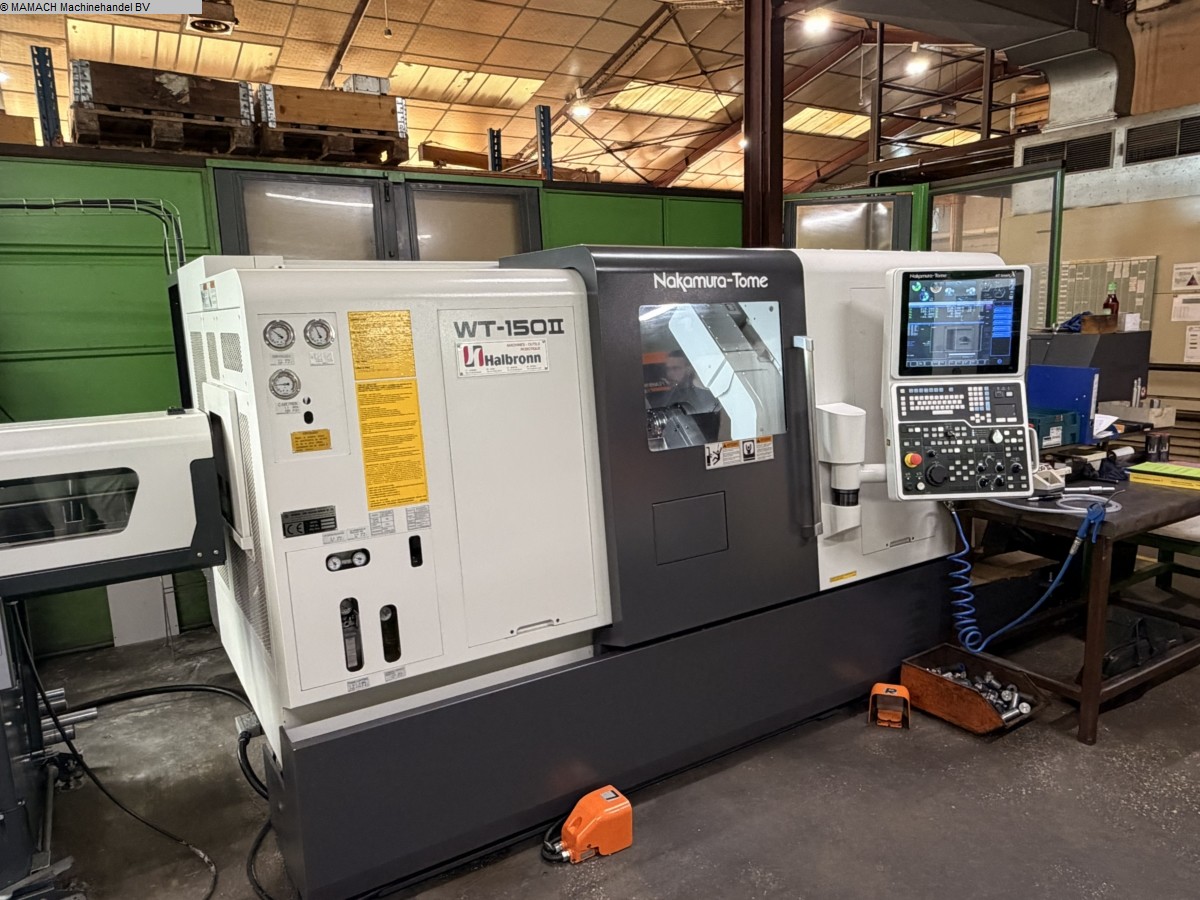

NAKAMURA TOME WT 150-II #2041-2835 en
Stock number 2041-2835
| TECHNICAL DETAILS | |
|---|---|
| Year | 2022 |

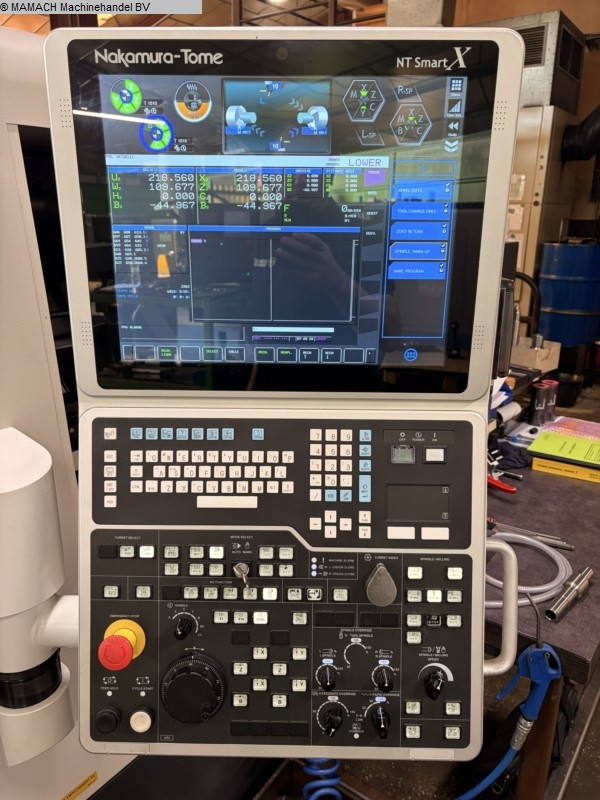

| Control | NT Smart X (Fanuc i) |
| Turning diameter | 170/190 mm |
| Turning length | 515 mm |
| Spindle bore diameter | 65 mm |
| Spindle Speed | 4500 1/min |
| Spindle motor | 15/11 kW |
| Movement X-axis | 152,5/167,5 mm |
| Movement Y-axis | +/- 35 mm |
| Movement Z-axis | 515/515 mm |
| Minimum indexing C-Axis main Spindle | 0.001 ° |
| Minimum Indexing C Axis Sub Spindle | 0.001 ° |
| Number of tools on turret | (2x) 12 x |
| Spindle speed driven tools | 6000 1/min |
| Tool Taper | BMT |
| Spindle motor driven tools | 5,5/3,7 kW |

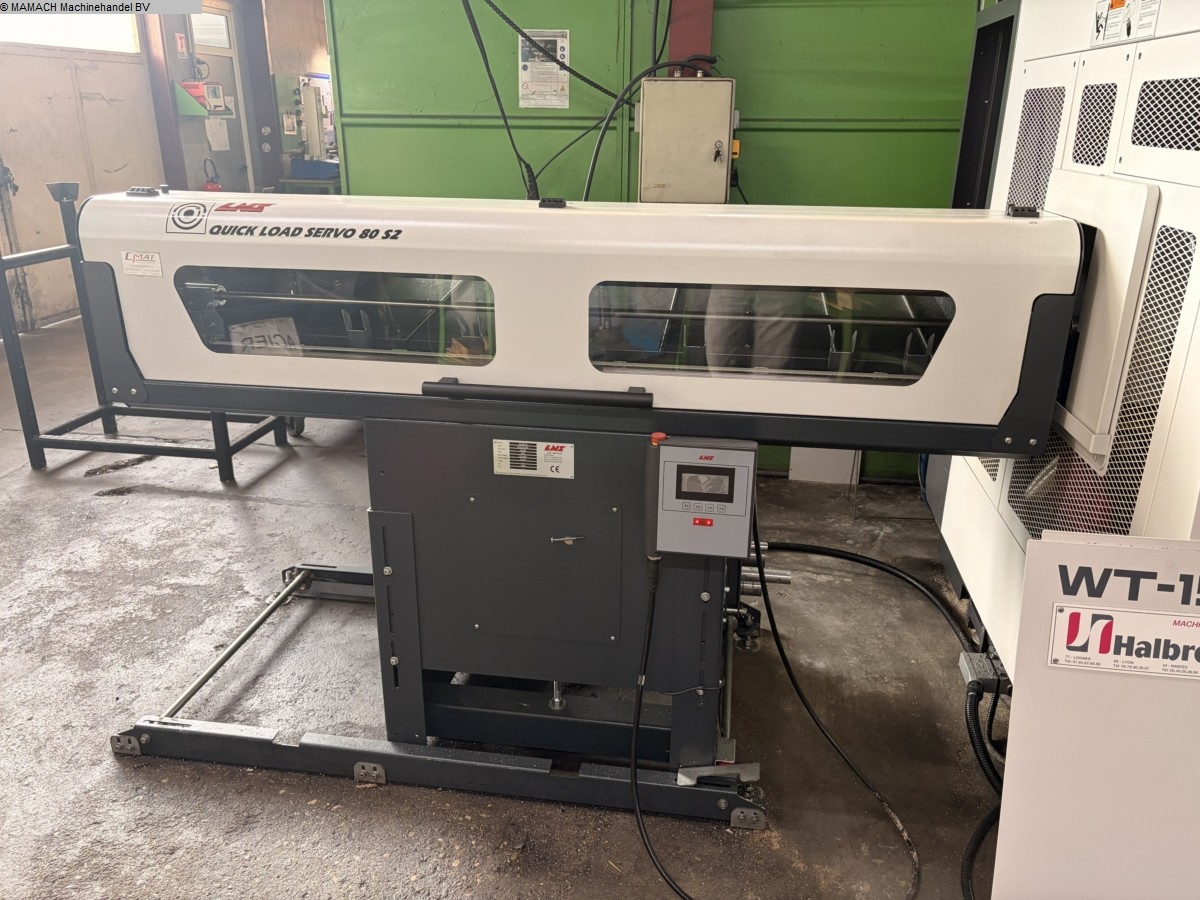

| Bar feeder | LNS Quick Load Servo 80S2 |
| Length | 5500 mm |
| Width | 2258 mm |
| Height | 1855 mm |
| Weight | 9500 kg |
