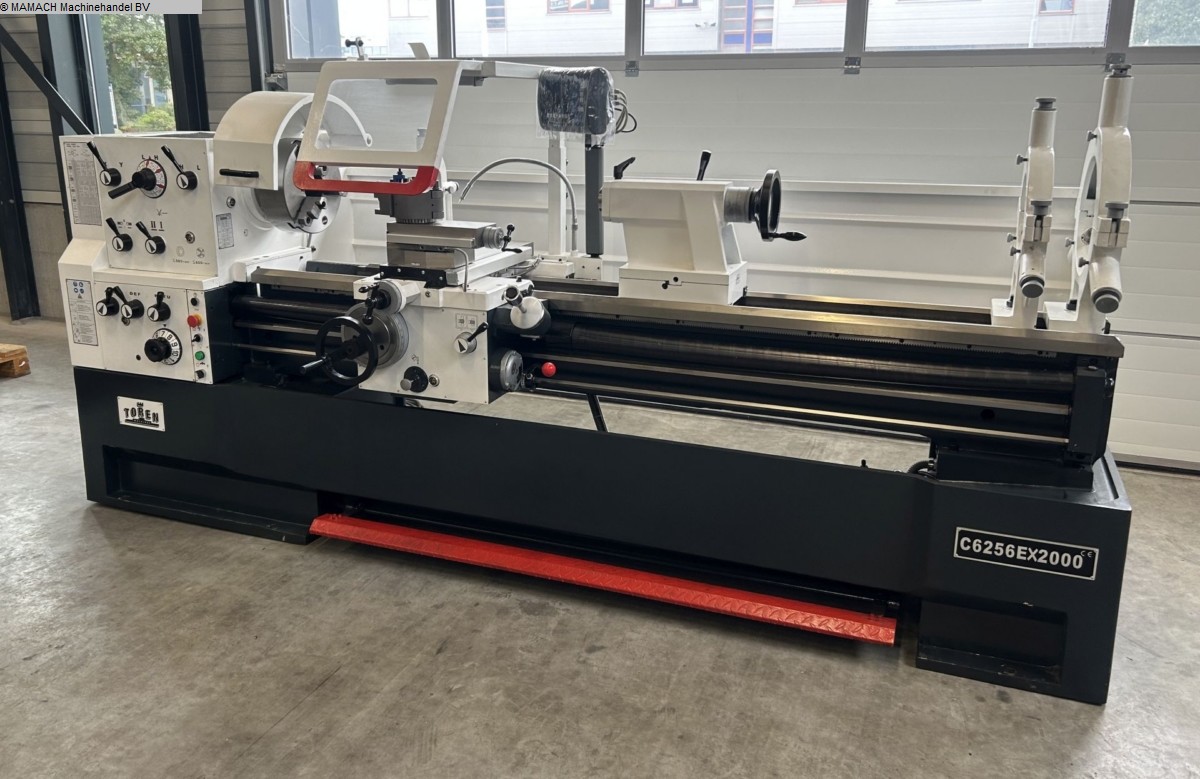

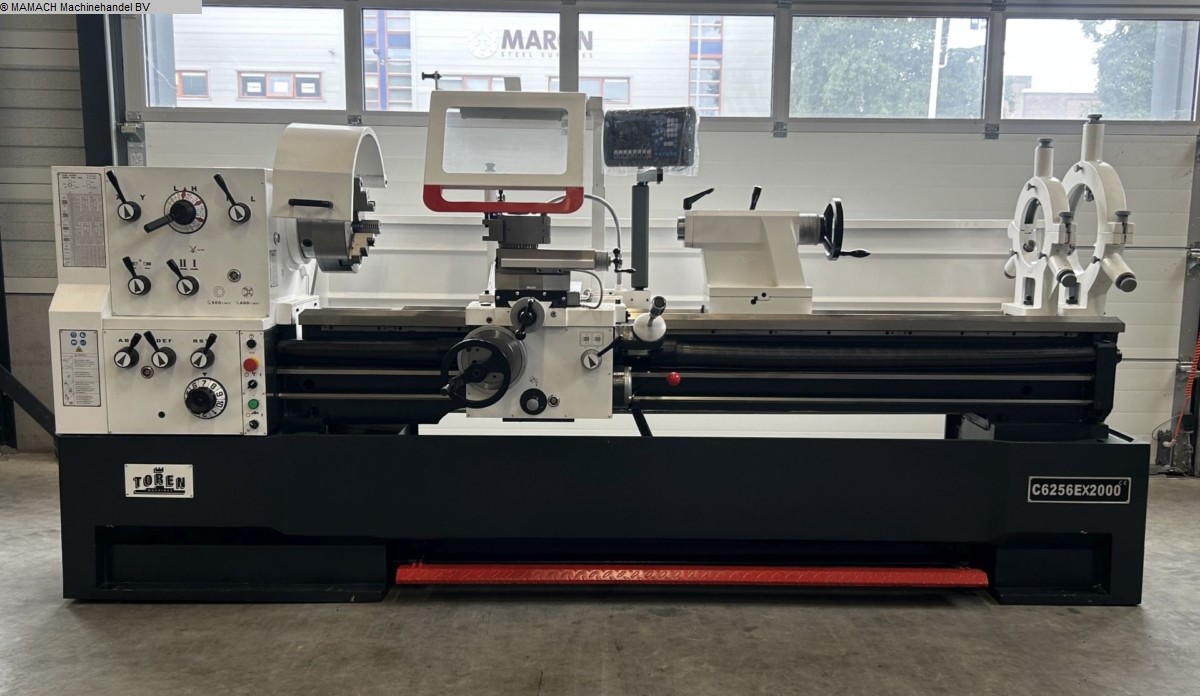

ToRen C6256E x 2000 #2041-N1014 en
Stock number 2041-N1014
| TECHNICAL DETAILS | |
|---|---|
| Year | |
| Distance between centers | 2000 mm |
| Max. swing over bed | 560 mm |
| Max. swing over carriage | 350 mm |
| Max. swing in gap | 788 mm |
| Spindle bore | 105 mm |
| Spindle taper | Camlock D1-8 |
| Spindle speed | 25 - 1500 1/min |
| Travel cross slide | 326 mm |
| Travel top slide | 130 mm |
| Digital read-out | Easson |
| Length | 3400 mm |
| Width | 1120 mm |
| Height | 1700 mm |
| Weight | 2740 kg |
| turning diameter | 350 mm |
| swing diameter over bed slide | 560 mm |
