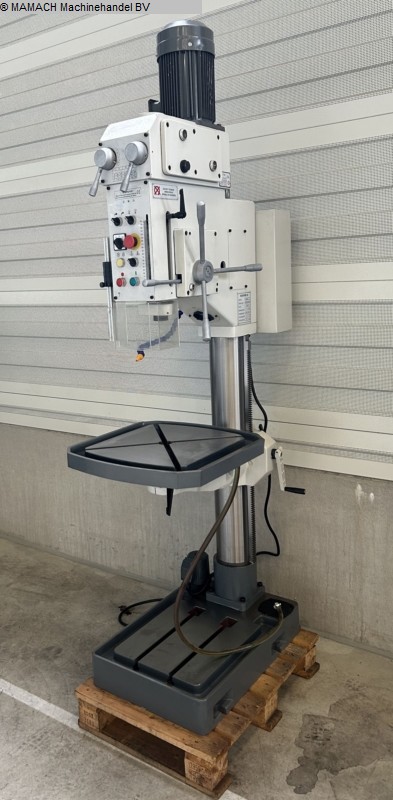

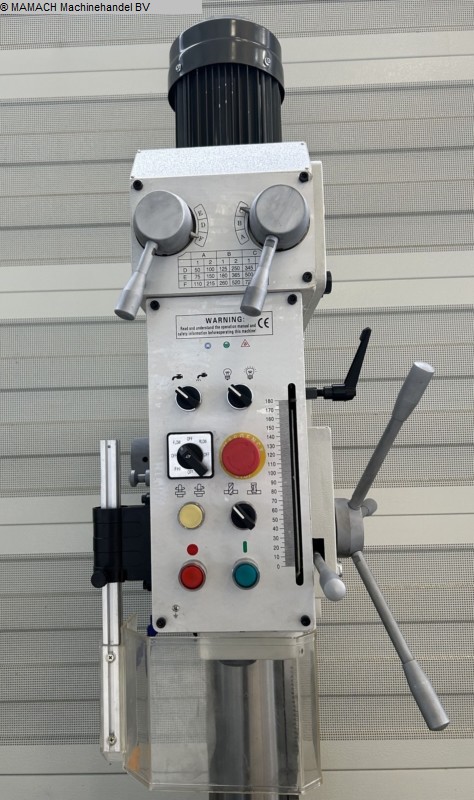

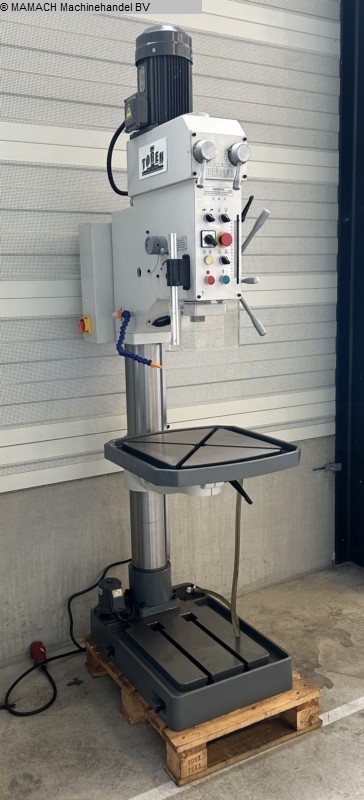

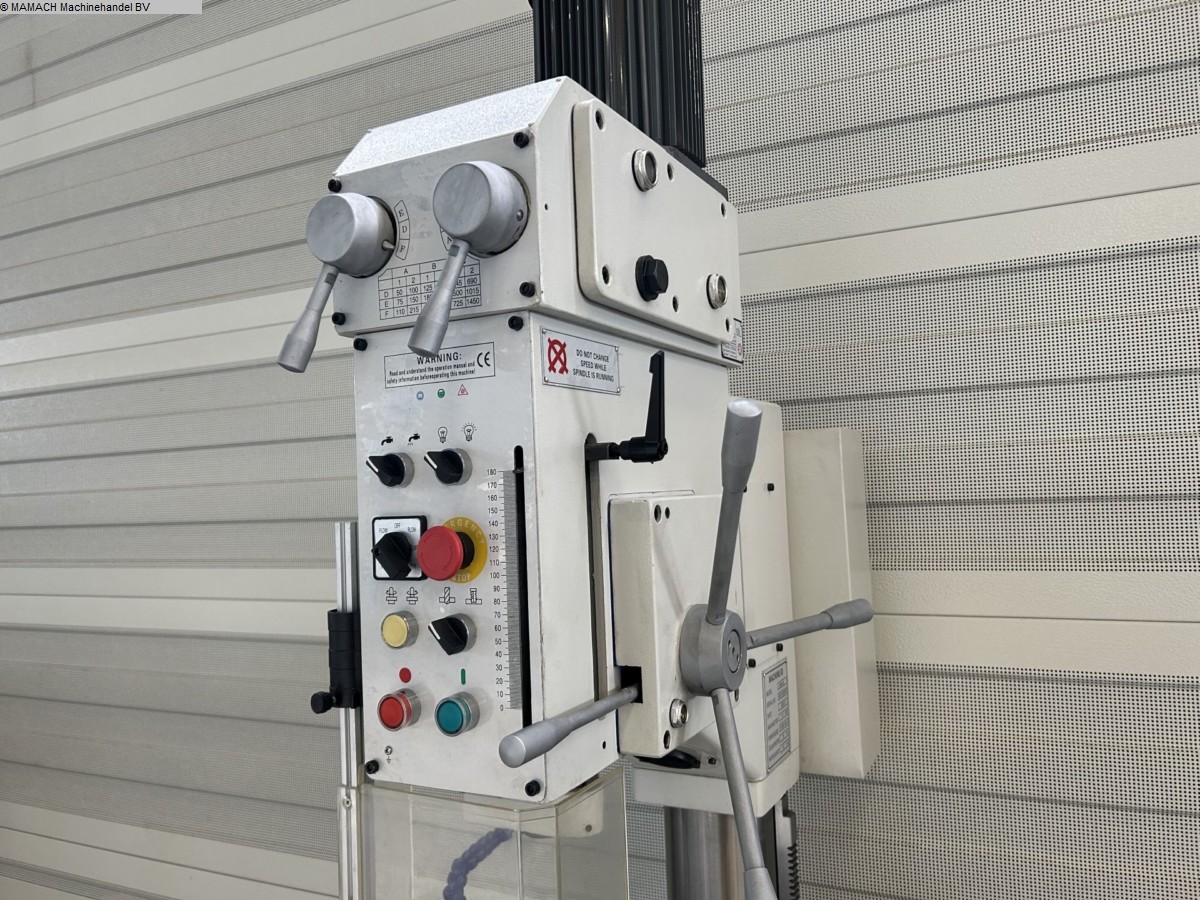

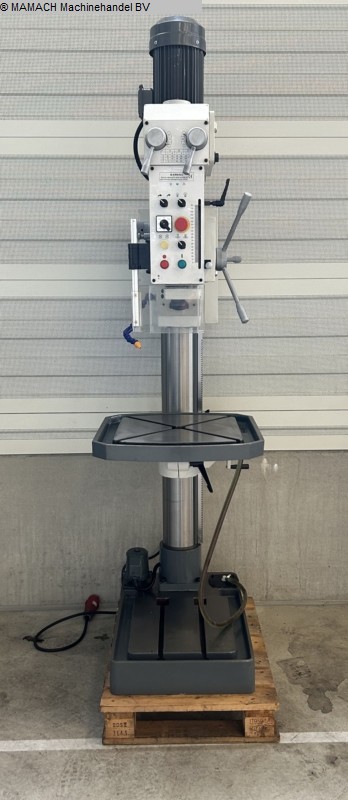

ToRen Z 5040 #2041-N2001 en
Stock number 2041-N2001
| TECHNICAL DETAILS | |
|---|---|
| Year | |
| Bore capacity in steel (diameter) | 40 mm |
| Throat | 350 mm |
| Bore stroke | 180 mm |
| Thread capacity | M 24 |
| Quill feed | 0,1-0,2 |
| Spindle taper | MK 4 |
| Spindle Speed | 50 - 1450 1/min |
| Table size | 560 x 560 mm |
| Width | 560 mm |
| Depth | 930 mm |
| Height | 2220 mm |
| Weight | 465 kg |
